FEXII series

Stage rental, quick disassembly and assembly

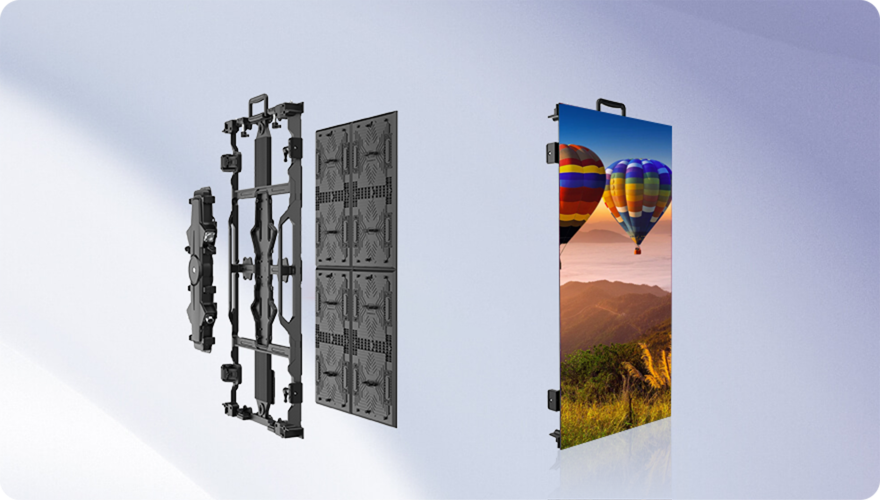

Modular design

Modularization of power boxes, enclosures, and modules

Capable of practical 5S fast loading and unloading

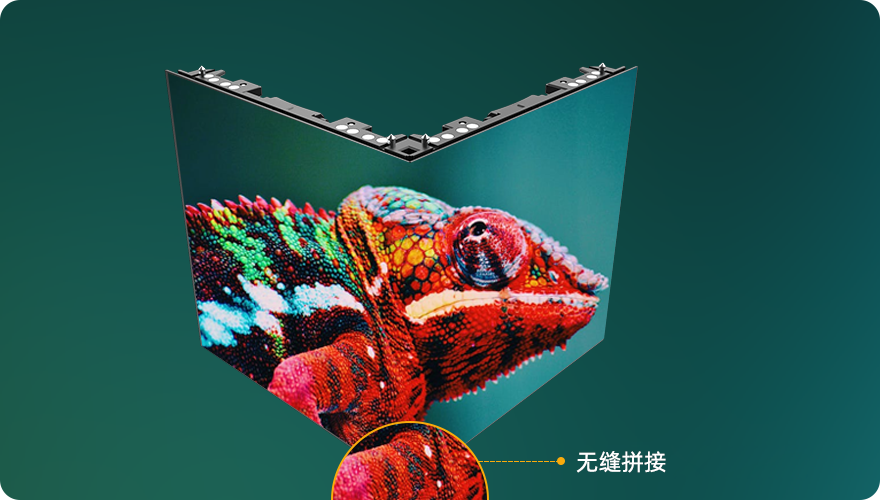

Diverse splicing

Independently developed arc-shaped lock design
Simple operation, easy to achieve seamless multi arc splicing of the box body
Compatible with L-shaped right angle expansion

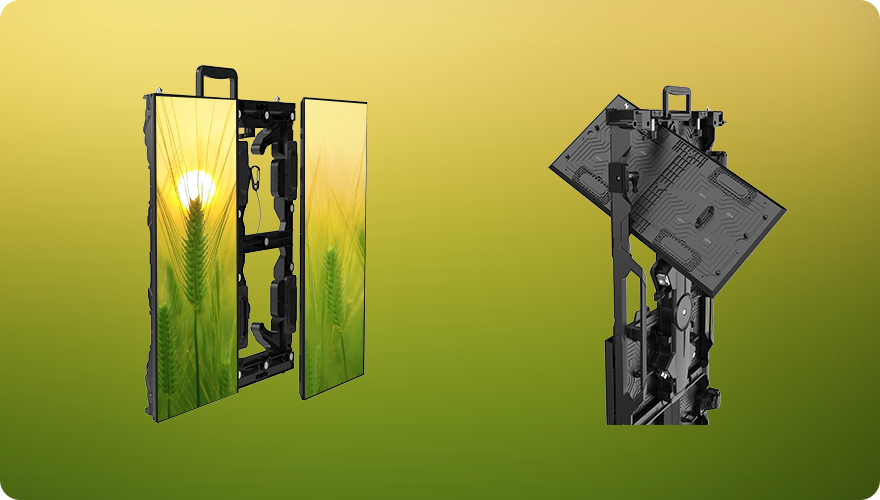

Convenient maintenance

Front and rear maintenance options are available

Easy to operate and time-saving

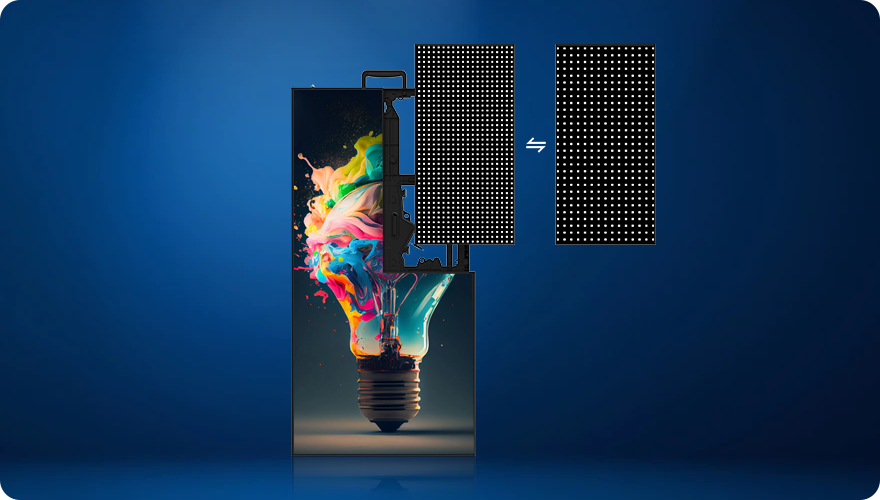

Universal box body

Same box
Modules with different point spacing can be used

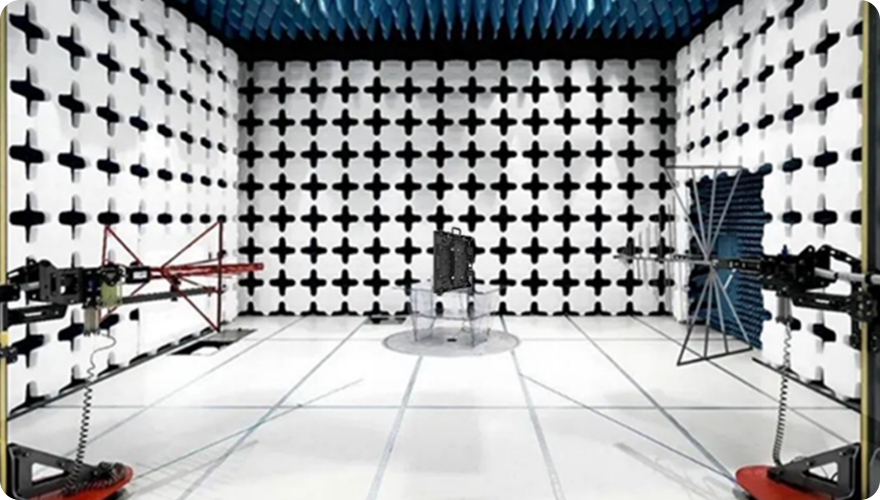

EMC设计

符合国际通用的电子EMC和FCC设计标准
可在标准及敏感环境下使用，产品运行稳定可靠

Technical Parameter

PRODUCT MODEL	P1.9	P2.9	P3.9	P4.8
LED beads	SMD 1515	SMD 1415	SMD 1921	SMD 1921
Point spacing (mm)	1.9	2.9	3.9	4.8
Module size (mm)	250×500	250×500	250×500	250×500
Box size (mm)	500/100x65	500/100x65	500/100x65	500/100x65
Weight (Kg)	7.5±5% / 13.5±5%	7.5±5% / 13.5±5%	7.5±5% / 13.5±5%	7.5±5% / 13.5±5%
brightness	＞1000	＞1000	＞1000	＞1000
Maximum power (W/㎡)	600	600	600	600
Average power (W/㎡)	180	180	180	180
Refresh rate (Hz)	≧3840	≧3840	≧3840	≧3840
弧度支持（°）	-10°to +10°	-10°to +10°	-10°to +10°	-10°to +10°
IP protection level (front/back)	IP50	IP50	IP50	IP50
Maintenance method	前/后维护	前/后维护	前/后维护	前/后维护
